Spec Qx to Spec Cx is Continuous

Design

Curved No

The LG CX has a sleek design with a premium feel to it, and it looks very similar to the LG C9 OLED. The silver metal on the back is a bit darker than its predecessor, but it has the same stand that allows the TV to sit close to the table.

The stand is very solid, and the TV doesn't wobble all that much. It's almost as wide as the TV, so you need a big table to place it on. Also, since the TV sits so low to the table, placing a soundbar in front of it could potentially obstruct the screen.

Footprint of the 55 inch TV stand: 36" x 9.6".

Wall Mount VESA 300x200

The back is identical to the LG C9 OLED. The top part that holds the panel is solid metal, and the bottom part that holds the inputs is textured plastic. There are both side-facing and back-facing inputs, and there's a plastic cover on the stand for cable management. If you plan on wall-mounting it and want a similar TV with a dedicated wall mount, check out the LG GX OLED.

Borders 0.35" (0.9 cm)

Max Thickness 1.93" (4.9 cm)

The panel itself is very thin, but it gets thicker on the bottom half where the inputs are.

The LG CX has fantastic build quality. The front of the stand and the top half of the back are made out of metal, but there's a bit of flex on the top half of the TV. The back of the stand and the panel holding the inputs are made out of solid plastic that feels like metal.

Picture Quality

Native Contrast Inf : 1

Contrast with local dimming N/A

Like all OLED TVs, the LG CX has a near-infinite contrast ratio since it can turn off individual pixels, resulting in perfect blacks.

Real Scene Peak Brightness 321 cd/m²

Peak 2% Window 459 cd/m²

Peak 10% Window 456 cd/m²

Peak 25% Window 414 cd/m²

Peak 50% Window 340 cd/m²

Peak 100% Window 176 cd/m²

Sustained 2% Window 439 cd/m²

Sustained 10% Window 435 cd/m²

Sustained 25% Window 395 cd/m²

Sustained 50% Window 324 cd/m²

Sustained 100% Window 146 cd/m²

Automatic Brightness Limiting (ABL) 0.069

Update 05/18/2021: We've retested the TV with the latest firmware (version 3.21.16). It seems like there's a way to minimize the ABL, and also limit how much the screen dims after a few minutes of displaying the image. Using a service remote, you can access a hidden menu by pressing on 'Start' and '0413'. Go to the OLED tab and disable 'TCP' and 'GSR'. This disables the dimming that happens over time when a static image is displayed. From our tests, we only saw a 5 cd/m² dip in brightness. In PC mode, leaving Game Peak Brightness disabled seems to result in less brightness variation. We measured between 243 cd/m² and 252 cd/m² in all windows, except the 100% windows, which we measure at 176 cd/m². In the 'Expert Dark' Picture Mode with Peak Brightness set to 'High', the 2% windows reach 441 cd/m², and it gets dimmer as the window size increases, with the 100% peak and sustained windows at 197 cd/m².

The LG CX has decent SDR peak brightness, but it may not be enough to combat glare from direct sunlight. It has an Automatic Brightness Limiter (ABL) that significantly dims the screen when large areas get bright, so that's why the 100% window is significantly less bright.

Like the LG C9 OLED, the LG CX has a Peak Brightness setting, which changes the way the ABL performs. With this setting turned off, most scenes are between 294 to 308 cd/m², with 166 cd/m² in the 100% window. Turning this setting to 'High', which is what we tested with, makes most scenes brighter, but large areas are less bright, so the ABL is more aggressive.

The measurements were taken post-calibration in the 'Expert (Dark Room)' Picture Mode, with OLED Light to '100' and Peak Brightness to 'High.' Before calibration, the TV was slightly less bright.

If you don't care about image accuracy and want the brightest image possible, we got 480 cd/m² in the 2% window in the 'Expert (Dark Room)' Picture Mode with Dynamic Contrast set to 'Medium', Peak Brightness on 'High', and OLED Light and Contrast at their max.

If you often watch in a bright room or take the TV outside to watch a game, the Samsung The Terrace can get much brighter to combat glare.

Local Dimming No

Backlight No Backlight

Update 06/22/2021: Added the real content local dimming videos.

Since the LG CX doesn't have a backlight, it doesn't have a local dimming feature. It can dim pixels individually, so bright objects and subtitles are displayed perfectly, with no visible blooming.

Local Dimming No

Backlight No Backlight

Update 06/22/2021: Added the real content local dimming videos.

Since it's an OLED that doesn't require a local dimming feature, there's perfect blacks and no blooming in Game Mode too.

Real Scene Highlight 681 cd/m²

Peak 2% Window 760 cd/m²

Peak 10% Window 817 cd/m²

Peak 25% Window 465 cd/m²

Peak 50% Window 311 cd/m²

Peak 100% Window 152 cd/m²

Sustained 2% Window 720 cd/m²

Sustained 10% Window 776 cd/m²

Sustained 25% Window 443 cd/m²

Sustained 50% Window 293 cd/m²

Sustained 100% Window 146 cd/m²

Automatic Brightness Limiting (ABL) 0.101

The HDR peak brightness is decent. It's not extremely bright in HDR, which is typical of OLEDs, but it's still brighter than some OLEDs like the LG BX OLED. It gets brightest with small highlights and quickly loses its brightness with larger areas due to the aggressive Automatic Brightness Limiter (ABL). EOTF follows the target curve perfectly until the sharp roll off, so it displays scenes at their correct brightness.

We measured the HDR brightness in the 'Cinema HDR' Picture Mode with OLED Light at its max, Peak Brightness on 'High', and Color Temperature set to 'Warm 2'.

If you find it too dim and want an even brighter image, then set Dynamic Tone Mapping on 'Medium', as you can see in this EOTF. Dynamic Tone Mapping can help make the image brighter, but it changes depending on the scene, so it actually lowered the brightness in our testing.

Real Scene Highlight 563 cd/m²

Peak 2% Window 749 cd/m²

Peak 10% Window 804 cd/m²

Peak 25% Window 457 cd/m²

Peak 50% Window 320 cd/m²

Peak 100% Window 152 cd/m²

Sustained 2% Window 633 cd/m²

Sustained 10% Window 768 cd/m²

Sustained 25% Window 433 cd/m²

Sustained 50% Window 302 cd/m²

Sustained 100% Window 147 cd/m²

Automatic Brightness Limiting (ABL) 0.096

The HDR brightness in Game Mode is okay. The real scene brightness is less than outside of Game Mode, but small highlights appear to be brighter when you're watching it. Once again, it has an aggressive ABL, so large areas of bright colors are more dim than the rest. Also, the EOTF looks nearly the same as outside of Game Mode.

We measured it in the 'Game' Picture Mode with OLED Light and Contrast at their max, Color Temperature set to 'Warm 2', and everything else at their default settings; the Peak Brightness setting isn't available in Game Mode.

50% Std. Dev. 1.526%

50% DSE 0.135%

5% Std. Dev. 0.401%

5% DSE 0.106%

The LG OLED55CXPUA has impressive gray uniformity, but this may vary between units. There's very little dirty screen effect in the center, which is great for sports fans. Uniformity is improved in near-dark scenes, but like other OLED TVs, there are some faint vertical and horizontal lines that could be visible in near-dark scenes in very dark rooms.

Native Std. Dev. 0.416%

Std. Dev. w/ L.D. N/A

Since this OLED TV can turn off individual pixels, the black uniformity is perfect.

Color Washout 48°

Color Shift 32°

Brightness Loss 62°

Black Level Raise 70°

Gamma Shift 57°

The LG CX has great viewing angles, and the image remains accurate when viewing from the side, which is great for a wide seating area.

Screen Finish Glossy

Total Reflections 1.5%

Indirect Reflections 0.4%

Calculated Direct Reflections 1.1%

Just like the LG C9 OLED, the LG CX has fantastic reflection handling. You shouldn't have any issues placing this in a bright room, but avoid placing it opposite a window with direct sunlight because sunlight can damage the OLED pixels.

White Balance dE 2.47

Color dE 1.77

Gamma 2.19

Color Temperature 7,034 K

Picture Mode Expert (Dark Room)

Color Temp Setting Warm 2

Gamma Setting 2.2

Update 12/08/2020: We remeasured the accuracy after calibrating our spectroradiometer. The review has been updated.

The LG OLED55CXPUA has great out-of-the-box color accuracy, but this may vary between units. Most colors are slightly inaccurate, and the white balance is a bit off, but it's hard to notice. The color temperature is colder than the 6500K target, so colors have a blue tint to them. Overall, the gamma follows the target fairly well, but some bright scenes are too bright.

White Balance dE 0.16

Color dE 1.00

Gamma 2.20

Color Temperature 6,512 K

White Balance Calibration 22 point

Color Calibration Yes

After calibration, the color accuracy is nearly perfect. Any color or white balance inaccuracies aren't visible without the aid of a colorimeter.

You can see our recommended settings here.

This TV upscales 480p content well, with no obvious upscaling artifacts.

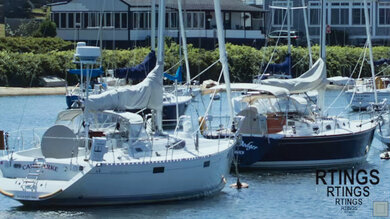

The LG CX upscales 720p content, like from cable boxes, well with no upscaling artifacts that we noticed on past OLED TVs.

1080p content looks almost as good as native 4k content.

There aren't any issues displaying 4k content.

The LG CX is a 4k TV and doesn't support an 8k signal.

Type OLED

Sub-Type WOLED

With an RGBW pixel structure, the LG OLED55CXPUA uses four sub-pixels, but all four are never used at the same time. This image shows the red, white, and blue sub-pixels. You can see the green sub-pixel in our alternative pixel photo.

Wide Color Gamut Yes

DCI P3 xy 97.32%

DCI P3 uv 98.71%

Rec 2020 xy 71.67%

Rec 2020 uv 75.65%

The LG CX displays a wide color gamut for HDR content. It has near-perfect coverage of the commonly-used DCI P3 color space that's used in most content. It also has decent coverage of the wider Rec. 2020 color space, which is used in less content.

Normalized DCI P3 Coverage ITP 80.6%

10,000 cd/m² DCI P3 Coverage ITP 44.2%

Normalized Rec 2020 Coverage ITP 61.0%

10,000 cd/m² Rec 2020 Coverage ITP 33.5%

Despite having an excellent color gamut, the LG CX's color volume is only decent. It can't produce extremely bright colors, but with an infinite contrast ratio, it can display dark, saturated colors.

Color Depth 10 Bit

Red (Std. Dev.) 0.083

Green (Std. Dev.) 0.105

Blue (Std. Dev.) 0.092

Gray (Std. Dev.) 0.081

Excellent gradient handling, but there's still some banding in most colors. Enabling the Smooth Gradation feature doesn't affect the test pattern but can help reduce banding in real content. However, enabling this feature can cause some loss in details.

IR after 0 min recovery 0.00%

IR after 2 min recovery 0.00%

IR after 4 min recovery 0.00%

IR after 6 min recovery 0.00%

IR after 8 min recovery 0.00%

IR after 10 min recovery 0.00%

Update 12/20/2021: We retested the image retention on our unit after updating the firmware and warming it up properly. It no longer shows any signs of temporary image retention.

The LG CX doesn't show any signs of temporary image retention, but this may vary between individual units. This test is only indicative of short-term image retention and not the permanent burn-in that may occur with longer exposure to static images. You can read more about burn-in here.

Permanent Burn-In Risk Yes

Unfortunately, like most OLED TVs, the LG CX isn't immune to permanent burn-in. However, we don't expect people who watch varied content to have any issues, but rather it's a problem if there are constant static displays, like if it's used as a PC monitor.

This TV has three features to help burn-in risk. Enabling Screen Shift option, and setting Logo Luminance Adjustment to 'Low' may help with this. There's also an Pixel Refresher that can be run manually if needed.

You can read about our investigation into this here.

If you're concerned about burn-in and you prefer an LED TV, check out the Samsung Q90/Q90T QLED.

Motion

80% Response Time 0.3 ms

100% Response Time 1.7 ms

The LG CX has a near-instantaneous response time, but you may still notice some motion blur. With the refresh rate at 120Hz, motion blur is noticeable in most content, as you can see here.

Flicker-Free No

PWM Dimming Frequency 0 Hz

Update 06/25/2020: We incorrectly stated that this TV was flicker-free, it's not. Although the flicker isn't at all noticeable, there is a slight dip in brightness every 8ms.

The LG CX OLED technically isn't flicker-free because there's a slight dip in brightness every 8ms, which coincides with its refresh rate, but isn't noticeable.

Optional BFI Yes

Min Flicker For 60 fps 60 Hz

60Hz For 60 fps Yes

120Hz For 120 fps Yes

Min Flicker for 60 fps in Game Mode 60 Hz

Update 05/26/2020: 120Hz BFI only works properly in Game Mode. Since BFI isn't available when G-SYNC is enabled, to display a 4k @ 120Hz signal with BFI, you have to disable VRR from the source and manually enter Game Mode. In any other picture mode, 4k @ 120Hz signals skip frames, causing duplications when BFI is enabled.

This TV has a black frame insertion (BFI) feature to improve the appearance of motion. However, there are some issues with 120Hz BFI, as it causes some artifacts. You can't really see them in this photo though.

Motion Interpolation (30 fps) Yes

Motion Interpolation (60 fps) Yes

The LG CX can interpolate lower-frame rate content up to 120fps, which causes the 'Soap Opera Effect'. It works well, and for some reason, 30fps content looks better than 60fps, but it's not very noticeable in real content. You'll notice any difference only if you really look for it.

Frame Hold Time @ 24 fps 39.9 ms

Frame Hold Time @ 60 fps 14.9 ms

Since the LG CX Series has such a fast response time, lower-frame rate content can appear to stutter as each frame is held on for longer. This can be noticeable during panning shots.

Judder-Free 24p Yes

Judder-Free 24p via 60p Yes

Judder-Free 24p via 60i Yes

Judder-Free 24p via Native Apps Yes

Update 06/03/2020: We retested 24p judder with different BFI settings and found that the LG CX can playback 24p content without judder, with BFI enabled, but only with certain BFI settings.

This TV can remove judder from all sources, like Blu-ray players or native apps. When watching 24p content (like movies) with BFI enabled, the LG CX can still play them without judder, but only if BFI is set to 'Low', 'Medium', or 'Auto'. 60p content can also be played with BFI, without judder, but only when BFI is set to either 'Auto', or 'Medium'.

Native Refresh Rate 120 Hz

Variable Refresh Rate Yes

HDMI Forum VRR Yes

FreeSync Yes

G-SYNC Compatible Yes (NVIDIA Certified)

4k VRR Maximum 120 Hz

4k VRR Minimum < 20 Hz

1080p VRR Maximum 120 Hz

1080p VRR Minimum < 20 Hz

1440p VRR Maximum 120 Hz

1440p VRR Minimum < 20 Hz

VRR Supported Connectors HDMI

Update 06/15/2021: We updated the TV to the latest firmware and retested VRR. Low framerate compensation is now working properly, and G-SYNC works properly even if the framerate drops below 20Hz.

Update 08/19/2020: We confirmed that it supports HDMI Forum's VRR. With the Xbox One S connected, we disabled the FreeSync setting and enabled the G-SYNC setting on the TV. The Xbox showed VRR as still working, meaning it was working with HDMI Forum VRR.

Update 07/08/2020: Support for FreeSync has been added in the latest firmware update (version 03.10.20).

The LG CX OLED has a 120Hz refresh rate, it supports HDMI Forum's VRR to reduce screen tearing, and it's G-SYNC compatible with newer NVIDIA graphics cards.

Inputs

1080p @ 60Hz 13.6 ms

1080p @ 60Hz Outside Game Mode 97.0 ms

1440p @ 60Hz 13.8 ms

4k @ 60Hz 13.6 ms

4k @ 60Hz + 10-Bit HDR 13.5 ms

4k @ 60Hz @ 4:4:4 13.6 ms

4k @ 60Hz Outside Game Mode 97.0 ms

4k @ 60Hz With Interpolation 92.9 ms

8k @ 60Hz N/A

1080p @ 120Hz 6.9 ms

1440p @ 120Hz 6.9 ms

4k @ 120Hz 6.7 ms

1080p with Variable Refresh Rate 5.9 ms

1440p with VRR 6.2 ms

4k with VRR 5.9 ms

8k with VRR N/A

Update 06/15/2021: We retested the input lag with the latest firmware. The 4k @ 120Hz input lag is much lower, and much closer to the LG C1 OLED. We retested the other formats as well, but there were no other significant changes.

Update 11/03/2020: We retested the input lag with an HDMI 2.1 source, including 4k @ 120Hz.

Update 08/06/2020: Numbers for input lag reduced by 0.5ms to compensate for delay with the computer.

Update 05/26/2020: Input lag was retested with our "RTX 2070 Super" computer because the laptop had an issue with it. The numbers are all updated, though most haven't changed by any significant margin (0.1-0.5ms).

The LG CX Series has really low input lag in Game Mode, and it stays low with VRR enabled, which is great for gaming. It also stays low with a 4k resolution, which makes it a good choice for Xbox One X or PS4 Pro owners.

Resolution 4k

1080p @ 60Hz @ 4:4:4 Yes

1080p @ 120Hz Yes (native support)

1440p @ 60Hz Yes (forced resolution required)

1440p @ 120Hz Yes (native support)

4k @ 60Hz Yes

4k @ 60Hz @ 4:4:4 Yes

4k @ 120Hz Yes (native support)

8k @ 30Hz or 24Hz No

8k @ 60Hz No

Update 11/03/2020: We retested it with an HDMI 2.1 source.

Update 09/21/2020: According to other owners, the LG CX can't display 4:4:4 properly when sent a 4k @ 120Hz signal from an RTX 3080 over HDMI 2.1. However, we were able to confirm it displays chroma 4:4:4 at that resolution.

Update 08/18/2020: 1440p @ 60Hz is only available when forced through a custom resolution; it's not natively supported.

Update 05/24/2020: 4k @ 120Hz is only displayed properly in Game Mode. Outside of Game Mode, it skips frames.

Like the LG C9 OLED, the LG CX displays all common resolutions. For it to display proper chroma 4:4:4 at 4k @ 120Hz and any resolution at 60Hz, which is important for reading text, it must be in 'PC' mode. However, 4:4:4 doesn't work on 1080p @ 120Hz. For full bandwidth signals, enable HDMI Ultra HD Deep Color.

Auto Low Latency Mode (ALLM) Yes

PS5, 4k @ 120Hz + HDR Yes

PS5, 4k @ 120Hz Yes

PS5, 4k @ 60Hz + HDR Yes

PS5, 1440p @ 120Hz PS5 can't do 1440p

PS5, 1080p @ 120Hz Yes

PS5, Variable Refresh Rate PS5 can't do VRR yet

Xbox Series X, 4k @ 120Hz + HDR Yes

Xbox Series X, 4k @ 120Hz Yes

Xbox Series X, 4k @ 60Hz + HDR Yes

Xbox Series X, 1440p @ 120Hz Yes

Xbox Series X, 1080p @ 120Hz Yes

Xbox Series X, Variable Refresh Rate Yes

Thanks to the HDMI 2.1 inputs, it supports 4k gaming up to 120Hz from either the Xbox Series X or PS5. It has an Auto Low Latency Mode that automatically switches the TV into Game Mode when you launch a game from a compatible device. When Dolby Vision is enabled, you're limited to 4k up to 60fps games and FreeSync doesn't work, but HDMI Forum VRR still works. However, this issue was fixed with a firmware update with the LG G1 OLED, and an update has yet to be released for the CX; we'll retest the TV once it's available.

HDR10 Yes

HDR10+ No

Dolby Vision Yes

HLG Yes

HDMI 2.0 Full Bandwidth Yes (HDMI 1,2,3,4)

HDMI 2.1 Class Bandwidth Yes (HDMI 1,2,3,4)

CEC Yes

HDCP 2.2 Yes (HDMI 1,2,3,4)

USB 3.0 No

Variable Analog Audio Out Yes

Wi-Fi Support Yes (2.4 GHz, 5 GHz)

Update 11/03/2020: We retested it with an HDMI 2.1 source. We confirmed all HDMI inputs support HDMI 2.1.

The LG CX doesn't support full-bandwidth HDMI 2.1. It only has 40Gbps ports capable of 4k @ 120Hz @ 4:4:4 10-bit instead of 48Gbps ports, which could reach 12-bit, but we don't expect this to make any noticeable difference.

HDMI 4

USB 3

Digital Optical Audio Out 1

Analog Audio Out 3.5mm 1

Analog Audio Out RCA 0

Component In 0

Composite In 1 (incl. adapter)

Tuner (Cable/Ant) 1

Ethernet 1

DisplayPort 0

IR In 0

SD/SDHC 0

ARC Yes (HDMI 2)

eARC support Yes

Dolby Atmos via TrueHD via eARC Yes

DTS:X via DTS-HD MA via eARC No

5.1 Dolby Digital via ARC Yes

5.1 DTS via ARC No

5.1 Dolby Digital via Optical Yes

5.1 DTS via Optical No

The LG CX supports eARC when connected to a compatible receiver, so it can send high-quality audio like Dolby Atmos via TrueHD to an external receiver. Unfortunately, LG has dropped DTS decoding from their 2020 TVs.

Sound Quality

Low-Frequency Extension 63.50 Hz

Std. Dev. @ 70 2.12 dB

Std. Dev. @ 80 2.12 dB

Std. Dev. @ Max 5.18 dB

Max 91.2 dB SPL

Dynamic Range Compression 5.62 dB

The speakers have a good frequency response. Its bass is better than the LG C9 OLED. It still can't produce any rumble or thump, but it has some punch to it. It can get fairly loud, and it's well-balanced overall, so it can produce clear dialogue.

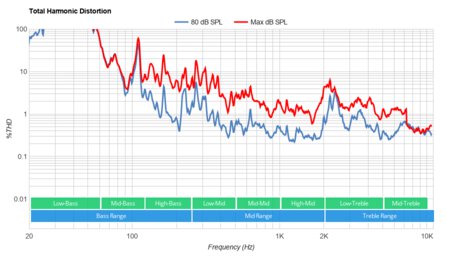

Weighted THD @ 80 0.085

Weighted THD @ Max 0.519

IMD @ 80 2.00%

IMD @ Max 10.89%

This TV has decent distortion performance. It doesn't have much audible distortion at moderate listening levels but gets more noticeable at its max volume. However, not everyone may hear this, and it depends on the content.

Smart Features

Smart OS webOS

Version 5.0

Ease of Use Easy

Smoothness Average

Time Taken to Select YouTube 2 s

Time Taken to Change Backlight 7 s

Advanced Options Many

The WebOS interface is smooth and easy to use. There weren't any bugs during testing, and apps didn't hang when launching as they did on the LG C9 OLED.

Ads Yes

Opt-out No

Suggested Content in Home Yes

Opt-out of Suggested Content No

The TV isn't ad-free as we did occasionally see them during testing, but we couldn't take a picture. They aren't always there either.

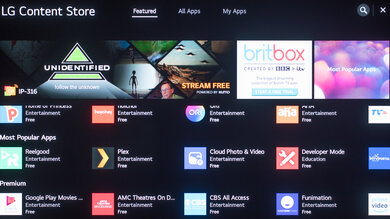

App Selection Great

App Smoothness Average

Cast Capable Yes

USB Drive Playback Yes

USB Drive HDR Playback Yes

HDR in Netflix Yes

HDR in YouTube Yes

The app store has a ton of apps available and you can cast content from your device too.

Size Large

Voice Control Many Features

CEC Menu Control Yes

Other Smart Features Yes

Remote App LG TV Plus

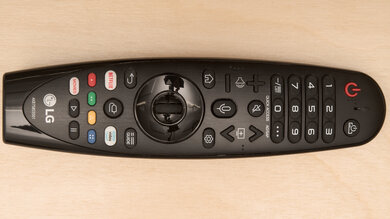

This TV uses the same LG Magic Remote as other high-end LG TVs. You can use it like a traditional remote or point and press, and the pointer is smooth. It has shortcut buttons to popular streaming platforms like Netflix and Amazon Prime Video. It has built-in voice control that allows you to change inputs, search for content, or ask for the weather. Also, you can use the remote for other devices, even if they don't support CEC.

There's a single button underneath the center of the screen. It allows you to turn the TV On/Off, change inputs, volume, and channels.

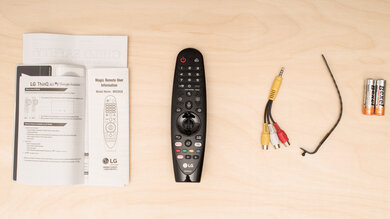

• User manual
• Remote
• Composite breakout adapter
• Batteries
• Not shown: Power cable and panel covers for cable management

Power Consumption 75 W

Power Consumption (Max) 178 W

Firmware 03.00.45

mortensentwition.blogspot.com

Source: https://www.rtings.com/tv/reviews/lg/cx-oled

Share this post
